PETZL SPIN S1 Pulley
PETZL SPIN S1 Pulley
Couldn't load pickup availability
Possible to open, even when attached to the anchor, the SPIN S1 OPEN pulley is designed for maximum simplicity in setting up haul or load deviation systems and tensioned highlines. Compact, reducing weight and bulk. The sheave mounted on sealed ball bearings provides excellent efficiency. The swivel facilitates operations, allowing the pulley to be oriented under load. The gated opening on the swivel makes the pulley compatible with a wide variety of products (PAW rigging plates, and more), reducing bulk during set up.
Â
The SPIN S1 Pulley is designed for simplicity in setting up haul or load deviation systems and tensioned highlines. The gated opening on the swivel makes for a compatible pulley with a variety of products.Â
Features
Features
- Compact pulley designed for maximum simplicity in setting up haul or load deviation systems and tensioned highlines for work at height and technical rescue, when weight and size are important factors.

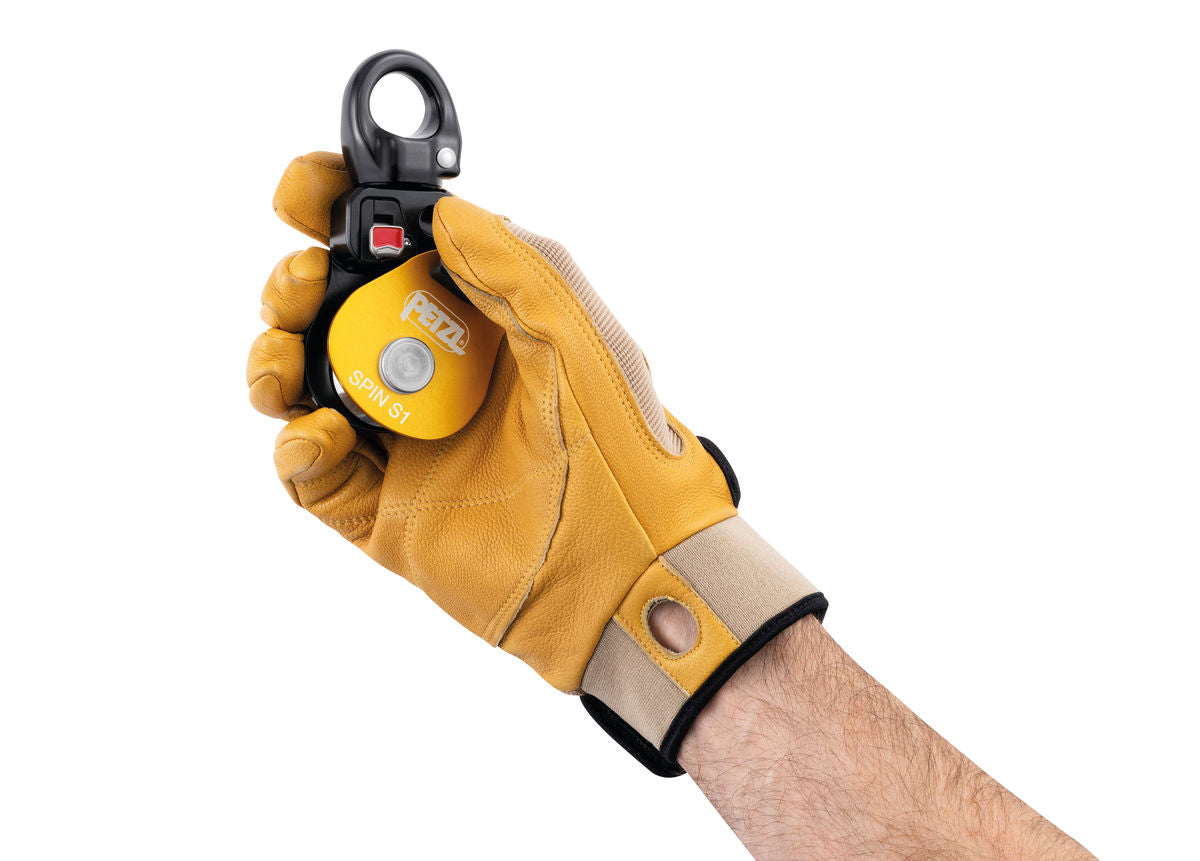

- Triple-action opening of the moving side plate is quick and easy, even with gloves

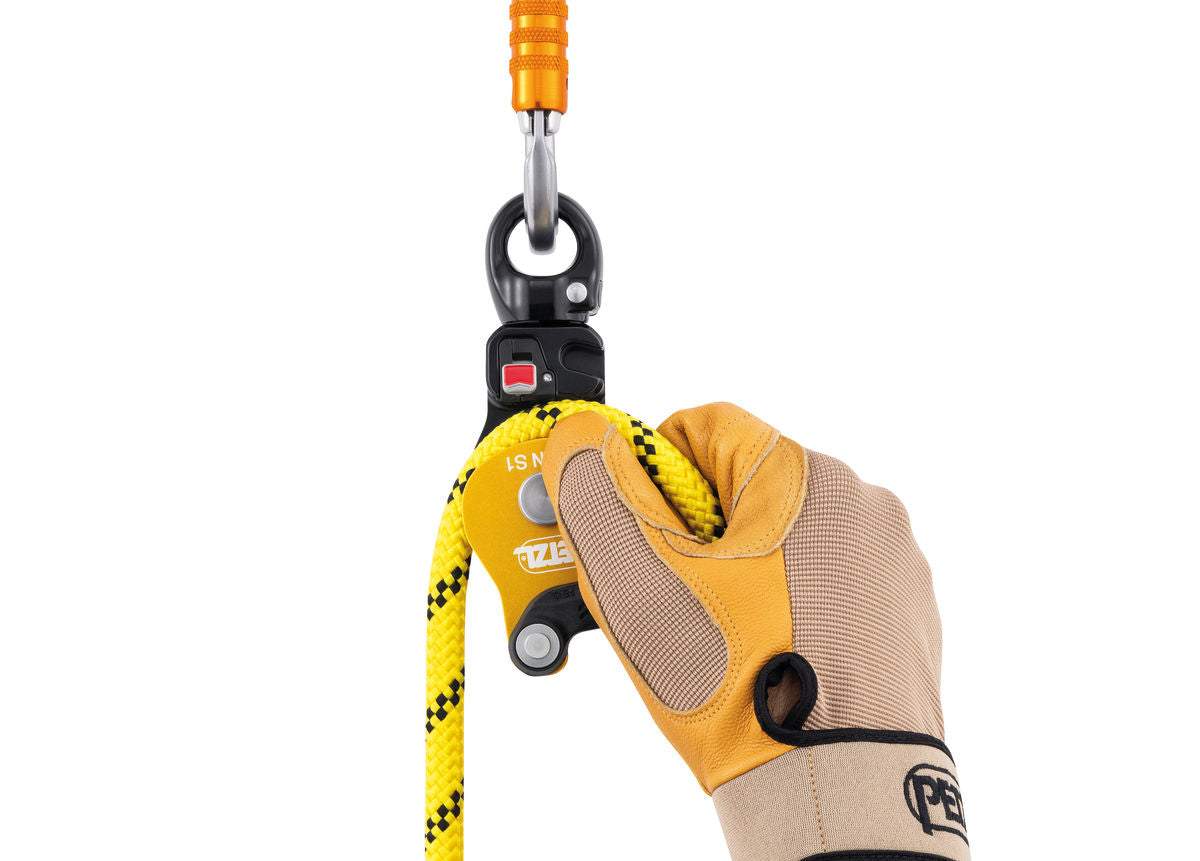

- The rope can be installed with the device connected to the anchor
- Red indicator provides a visual warning when the moving side plate is unlocked
- Special side plate design protects the rope path
- Optimal efficiency: Mid-size diameter sheave mounted on sealed ball bearings for great efficiency.
- Facilitates operations, thanks to the swivel
- Allows pulley to be oriented under load

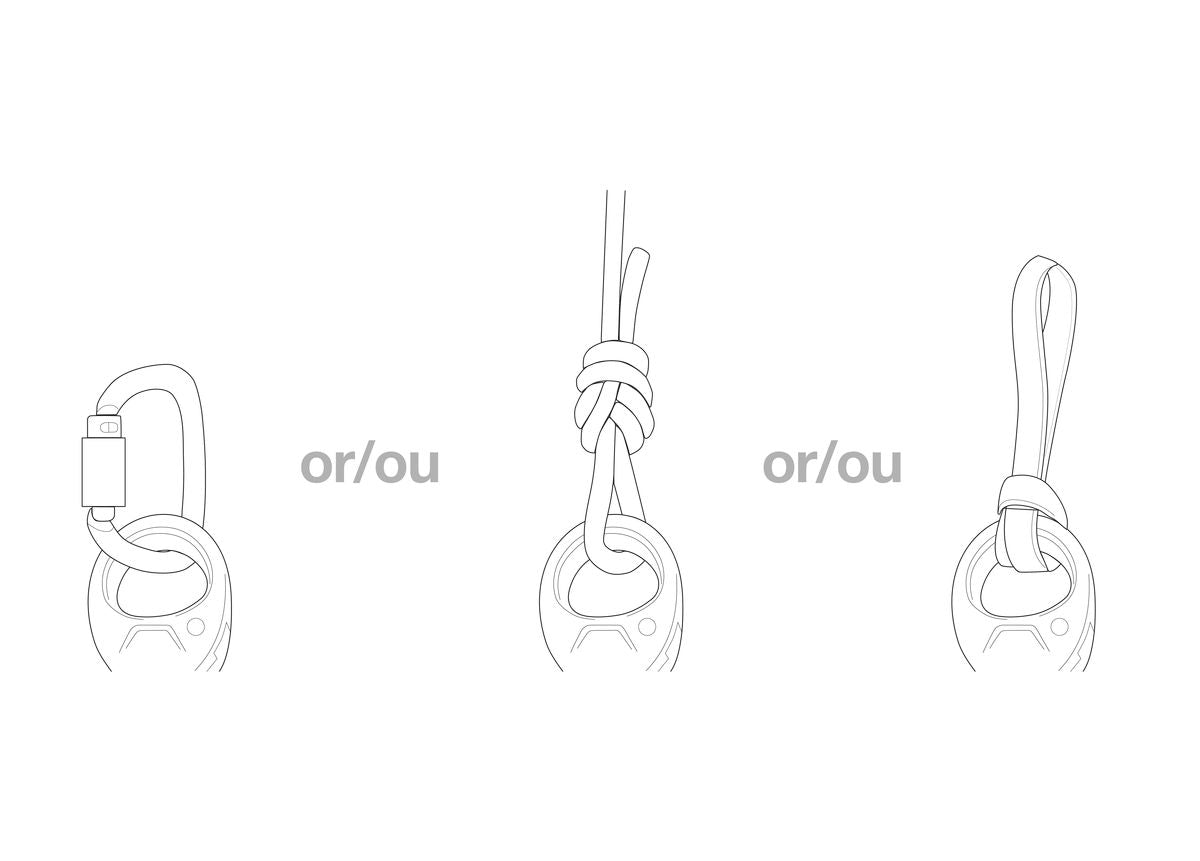

- Ropes or slings can be threaded for easier rigging
- Allows most carabiners to rotate, meeting European standards
Specs
Specs
- Weight: 145 g

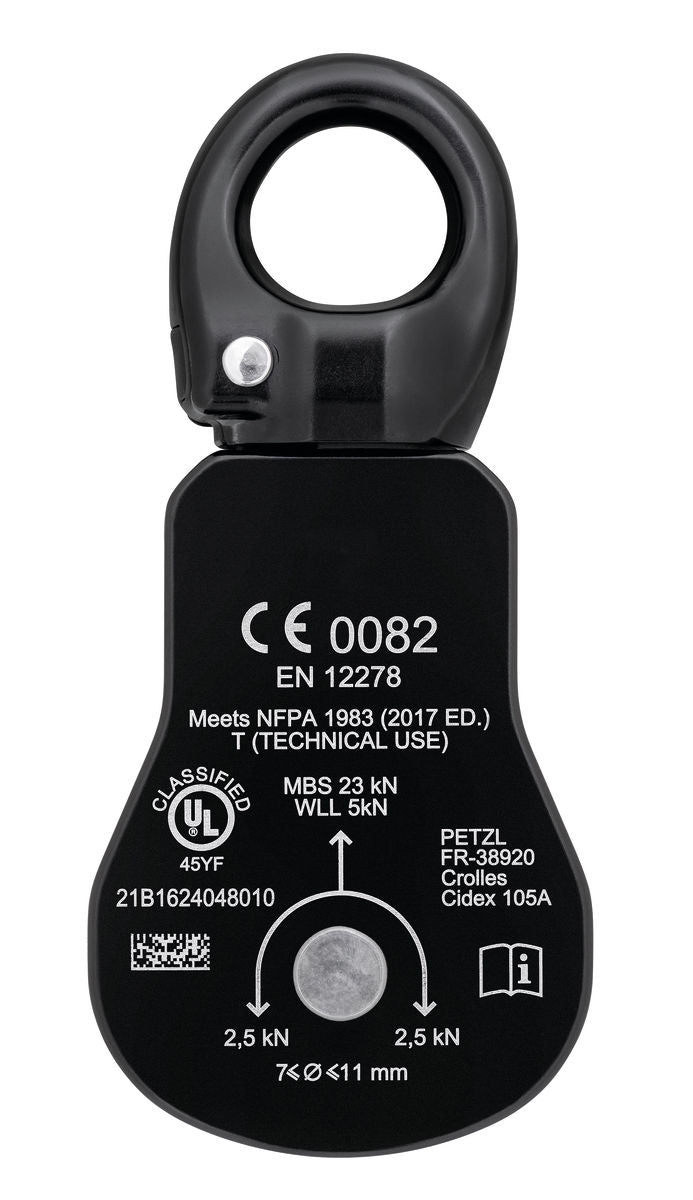

- Certification(s): CE EN 12278, NFPA 1983 Pulley Technical Use, UKCA, UIAA
- Material(s): Aluminum, stainless steel, nylon
- Min. rope diameter: 7 mm
- Max. rope diameter: 11 mm
- Sheave type: Sealed Ball Bearings
- Sheave diameter: 25 mm
- Maximum working load: 2,5 x 2 = 5 kN
- Breaking strength: 23 kN
- Efficiency: 91 %
References
References
| References | P002AA00 | P002AA01 |
|---|---|---|

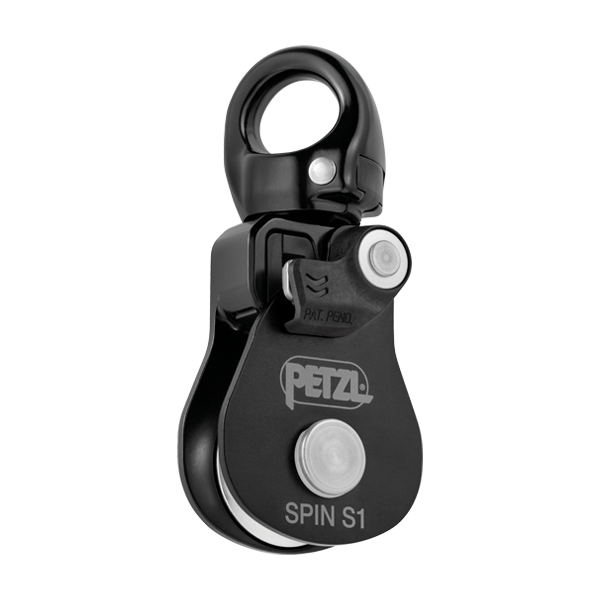

| Color(s) | Yellow | Black |
| Guarantee | 3 years | 3 years |
| Inner Pack Count | 1 | 1 |
